Caractéristiques

Condition: New

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction worksÂ

Showroom Location: None

Voltage: 380V 50Hz 3Phases

Weight: About 9.5Tons

Warranty: 5 years

Production Capacity: 8-12m/min

Power: 5.5Kw+4Kw

Dimension(L*W*H): About10200*1450*1810mm

Applicable Material: Stainless Steel, Carbon steel

Key Selling Points: 5 Years Warranty

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certification: CE/ISO 9001

Name: Roller Shutter Door Frame Cold Roll Forming Machine

Raw Material: Color Steel, Galvanized Steel

Thickness: 1-2 mm

Application: door and window

Capacity: 8-12m/min

Cutting type: Hydraulic Cutting

Roller stations: 18

Delivery time: Within 35 days

PLC System: Delta Brand

Diameter Of Shaft: 50mm

Informations de base

Certification: CE/ISO 9001

Conditions de paiement et expédition

Packaging Details: 1.We will wipe anti rust oil for the whole machine . 2.Plc controller will be covered by foam film 3.Spare parts are some small parts are packed in a wodden case. 4.All componenets are fixed well by steel wire with container.

Supply Ability: 30 Set/Sets per Month

Description de produit

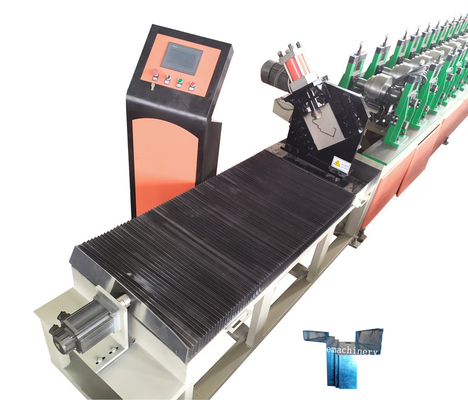

Automatic Galvanized Steel Plate Roller Shutter Door Frame Cold Roll Forming Manufacturing Machine

There are many different types of door frame profiles from different countries . But this door frame profile is very popular all over the world . The thickness of the material for this metal bending machine is 1.2mm , We can also make the thickness according to client requirement .

Specification

No.	Type		Specification
1	Row Material	Type	Colored steel plate, galvanized board, aluminum plate
		Feeding width	According to requirement
		Thickness	0.6-1.2mm
2	Main body	Roller station	18 steps (According to the profile)
		Diameter of shaft	50mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	200mm H Steel
		Frame thickenss	14 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About1020014501810mm
		Weight	About 9.5 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12
3	Power	Motor power	4 kw
		Hydraulic power	4 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Machine Working Flow

3 Tons Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting Device -- Product Receiving Table

Advantages

* High performance * No noise * Low cost

* 5 Years warranty * Long working life * Easy to operate

* High quality * Full Automatic * Pass ISO9001/CE

* Accurate * Teda brand PLC * Touch Screen

* Chain Drived * Two Operate Language

Component Of Machine

* 3 Tons Manual Deciler......................................1 Unit

* Main roll forming system.............................1 Unit

* Hydraulic system..................................1 Unit

* PLC Control Cabinet....................................1 Unit

* Receiving table.........................2 Unit

* Spare Part................1 Unit

If you want to learn more about this machine or has any questions , please contact us freely .
