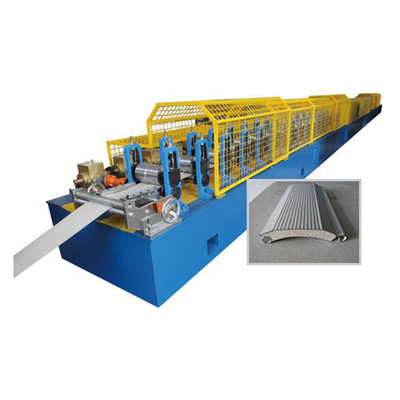

European Type Roller Shutter Door Equipment Roll Forming Making Machine

Product Description

The finished product of Roller Shutter Door Roll Forming Machine Rolling Slats is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Suitable Raw Material	PPGI/PPGL/GI/GL Steel Coils
Thickness Of Coil Sheet	0.5-1.2mm
Feeding Coil Width	280mm
Effective Width	150mm
Under Frame	400H-beam
Diameter Of Soild Shaft	70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment hard chrome coated 0.05-0.07mm
Thickness Of Middle Plate	18mm
Forming Stations	22
Drive Type	By chain(1.0 inch) link bearing model 6210
Power Of Main Motor	5.5kw with Cycloidal reducer, Lichao, Shanghai
Power Of Pump Station	4kw, Lichao, Shanghai
Forming Speed	About 15-20m/min
Hydraulic Cutting	Controlled by PLC
Plc	DELTA, TAIWAN / Mitsubishi, Japan
Material Of Cutting Blade	Cr12Mov, quenching 58-62℃
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
Switch	CHNT
Transducer	SAJ
