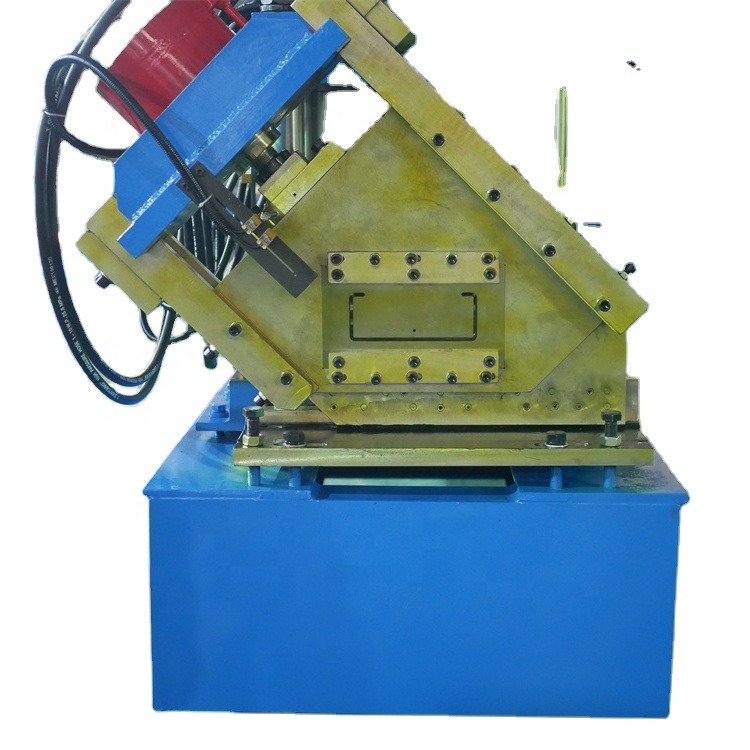

Hotels C Purlin Roll Forming Machine Purlin Roll Forming Machine

1 Set
MOQ
$25,000.00(>=1 Sets)
Prix
Hotels C Purlin Roll Forming Machine Purlin Roll Forming Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Condition: New
Type: Tile Forming Machine
Tile Type: Metal Steel
Use: Guard Rail
Production Capacity: 15m/min(not include cutting time)
Voltage: 380V 50HZ 3 Phase or Other
Dimension(L*W*H): Around 10m*2.2m*1.5m
Weight: 8000 kg
Warranty: 1 Year
Key Selling Points: Energy saving
Rolling thinckness: 1.5-3.0mm
Feeding width: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, Bearing, Gear, Pump, Engine, PLC
Keywords: Roll Forming Machine
Material Width: According to the profile
Rolling Thickness: 1.5-3.0 mm
Control System: PLC (Panasonic) as list in the note
Leveling Station: 7 rollers
Punching power: 5.5kw
Punching: Two sets
Roller Stations: 14 stations
Main Motor Power: 15kw
Product name: C Purlin Roll Forming Machine
Informations de base
Conditions de paiement et expédition
Packaging Details: C Purlin Roll Forming Machine For Sale 1. The machine is nude loaded in the container 2. The electric controlling box is packed by protect film 3. All the spare parts are put in the wooden box
Supply Ability: 200 Set/Sets per Year C Purlin Roll Forming Machine For Sale
Description de produit
Application

Application Range: C Purlin

Would like to know more about Saibo equipments, feel free to send us an inquiry !

Parameters
No.
Item
Description
1
Coil width
According to the final profile
2
Rolling speed
0-15m/min(not include cutting and punching time)
3
Rolling thickness
1.5-3.0mm
4
Control system
PLC (Panasonic) as list in the note
5
De-coiler
3 TON hydraulic de-coiler
6
Flatten roller
Upper us 3 rollers, down is 4 rollers
7
Roller stations
About 14 stations and one correction adjust system
8
Machine stand
Wall Panel structure
9
Adjust flange and width
By changing the rings on the shaft
10
Roller material
Ccr15, chrome plated surface with hardness 58-62 degree ,CNC
11
Shaft diameter
45# forged steel, φ70mm
12
Main motor power
15kw, AC motor
13
Hydraulic station power
5.5kw
14
Hydraulic pressure
16-20Mpa
15
Punching and cutting mode
Machine adopts pre-punching and pre-cutting
16
Material of cutting
Cr12Mov
17
Tolerance
3m+-1.5mm
18
Way of driving
By chain
C PurlinRoll Forming Machine
Machine Details

Would like to know more about Saibo equipments, feel free to send us an inquiry !

Related Products

Would like to know more about Saibo equipments, feel free to send us an inquiry !

Servies

Saibo's Online Service.

Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.

It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.

SAIBO Services Online helps you:

1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.

Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyze equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.

Options & Upgrades helps you:

1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalog

Would like to know more about Saibo equipments, feel free to send us an inquiry !

Packing & Delivery
Packing & Delivery

Packing
1. We wrap the machine with film, then covered with one wooden case.
2. Wooden  case and pallets will be used subject to different models and shipping methods.
3. Customized package solutions offered as per customer requirements.

Delivery
1. Sea shipping.
2. Air shipping for sampling.
3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.

Would like to know more about Saibo equipments, feel free to send us an inquiry !

About Saibo

Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.

Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.

Would like to know more about Saibo equipments, feel free to send us an inquiry !

FAQ

Q1 : How to find SAIBO?

● Search Alibaba and Website find Saibo Machinery, suppliers, and manufacturers and not traders
● Visit the exhibition in different countries
● Send Saibo a request and tell your basic inquiry
● Saibo sales manager will reply to you in a short time and add instant chatting tool

Q2 : You are welcome to our factory at any time .

● If we can fulfill your request and you interested in our products, you may pay a visit to Saibo site
● The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure to your after sales service.

Q3 : How to guarantee your funds to be safe and delivery to be on time ?

● Through the Alibaba letter guarantee service, it will ensure the on-time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.

Q4 : See Saibo how to ensure the quality !

● To ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory

Q5 : The after-sale service of Saibo !

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by the standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

Would like to know more about Saibo service, feel free to send us an inquiry !
