Aperçu /Produits/Ruloir à gouttière/Building Material Shops Steel Rainwater Downspout Spout Roll Forming Machinery Downspout Gutter And Elbow Machinery

Building Material Shops Steel Rainwater Downspout Spout Roll Forming Machinery Downspout Gutter And Elbow Machinery

1 Set
MOQ
Building Material Shops Steel Rainwater Downspout Spout Roll Forming Machinery Downspout Gutter And Elbow Machinery
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works
Showroom Location: None
Condition: New
Type: Tile Forming Machine
Tile Type: Steel
Use: Gutter
Production Capacity: 20M/MIN
Voltage: As client requirement
Dimension(L*W*H): 17000*1200*1400mm
Weight: 6000 kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Rolling thinckness: 0.3-0.8mm
Feeding width: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Gearbox, PLC
After-sales Service Provided: Online support
Informations de base
Conditions de paiement et expédition
Packaging Details: The Decoiler is covered with plastic films,the spare parts are in carton.
Supply Ability: 10 Set/Sets per Month
Description de produit

Description

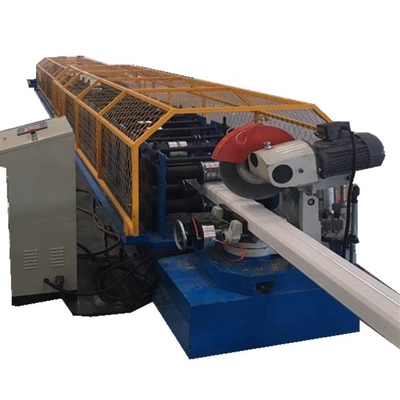

Rain water steel downpipe spout roll forming machines make precise and well sealed roof drain pipe

for carrying rainwater from a rain gutter.

Advantage of steel downpipe spout pipe;

Galvanized steel guttering resists thermal expansion and contraction,

which means that it remains unaffected from sudden fluctuations in temperature.

Steel has an excellent lifetime value, as it can be recycled.

The downpipe forming machine we produce is customized according to the specific requirements of customers,

such as specification and raw materials. The machine is installed and tested before leaving the factory.

After receiving the machine, the customer can start production once connect wires and tubes.

We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference.

Technicians Can also be sent to customer factory for guidance and training if necessary.

The downpipe roll forming machine also work with elbow bending machine,

which make flat pipe to curve according to construction requirement.

,

Specifications

Machine Specifications
Weight About 5000kgs
Size About 11m x 1.2m x 1m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm
Coil width 325mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20-22
Diameter of forming rollers shafts 60mm
Roll Forming Speed 8-12m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Motor of roll forming machine: 5.5kw
Motor of sawing cutter: 3kw
Motor of elbow machine: 1.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Sawing Cutting system 1 set
PLC control box 1 set
Elbow machine 1 set
Run outs tables 1 set
