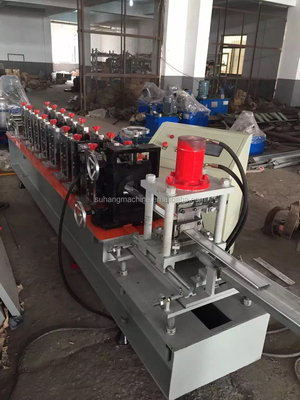

0.6-1.5mm PLC Control 12 Stations Transmission Metal Shutter Chain Door Slats Roll Forming Machine

PLC Control 12 Stations Chain Transmission Metal Shutter Door Roll Forming Machine

Shutter Door Technical Parameter
1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: chain
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min (not include cutting and punching stop time)
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: GCr15 steel, quenching treatment
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

Shutter Door Main Components

Working Flow of Guardrail Roll

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

Profiles of Guardrail Roll

Company Introduction

Wuxi Suhang Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
